Warning Lights

Warning Lights are a necessity in the crane industry so we keep certain warning lights as stock items. Below are pictures and specifications of the lights we keep in stock. Please contact us for pricing and if special lights are required we are able to manufacture to order.

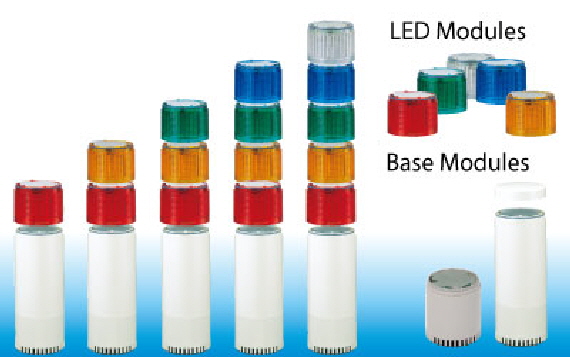

LU7 or LU7FB




PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance. FB type: 2 selectable built-in alarms with adjustable volume up to 90dB at 1m. Installation: Direct mount (Pole mount with optional parts). Colour co-ordinated Terminal Block: Corresponds to the lens colours for quick wiring verification in the base unit. Interchangeable LED module: No re-wiring even after installation. Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission Available Colours: Red, Amber, Green, Blue, Clear / White

Specifications LU7 or LU7FB
Size	50 mm diameter
Input voltage options	24 VDC
Functions available	Continuous only Continuous, Flashing, Alarms
Mounting options	Direct mount only, includes 3 mounting nuts
Body styles	Component style, wiring terminals provided Interchangeable and stackable after purchase
Body colours	Beige
Tiers	1-5 modules can be stacked
Module colours	Red / Yellow / Green / Blue / Clear
Alarms (FB style only)	Alarm 1: selectable, single-tone, continuous alarm, 85 dB (at 1 m) Alarm 2: selectable, single tone, intermittent (slow beep) alarm, 85 dB (at 1 m)
Ratings	CE UL Listed (US) UL Listed (Canada) RoHS
Protection	IP-65 Type 4 / 4X / 13 (indoor only)
Control options	Dry contact closure such as switches or relay contacts Open-collector transistor (NPN or PNP) for 24 VDC Direct voltage control for 24 VDC, continuous and alarm functions only

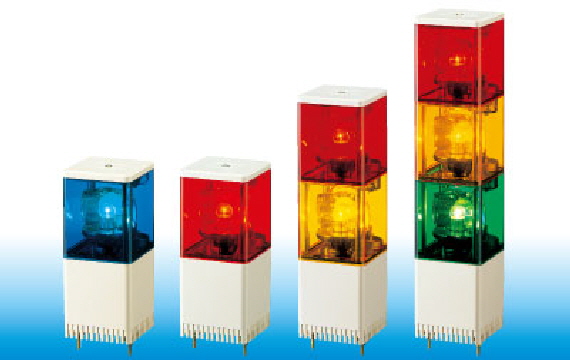

KJS 82mm ROTATING

Rotating Parabolic Reflector: For enhanced visibility from a distance.Flashing Cycle: 160 times/min

Built-in Alarm: Intermittent buzzer volume up to 85dB at 1m

Installation: Upright only

Main Body: Impact and heat resistant ABS resin

Lens: Superior weather resistant and light translucent AS resin

Spare Bulb: Included.

Available Colors: Red, Amber, Green, Blue

Specifications KJS 82mm Rotating
Size	82mm square
Operating Voltages	12V DC 24V DC 120V AC 220V AC
Functions	Rotating
Mounting	Direct mount
Body styles	Square base, colored lens Pre-assembled, pre-wired Lens Colors are interchangeable, but not stackable after purchase
Body Colour	Beige
Stackable Tiers	Fixed frame: 1, 2, 3 or 4-tier versions available
Globe Colour	Light Source: Bulb Lens Colours: Red / Amber / Green / Blue
Globe Material	Acrylic Resin
Protection	IP-23

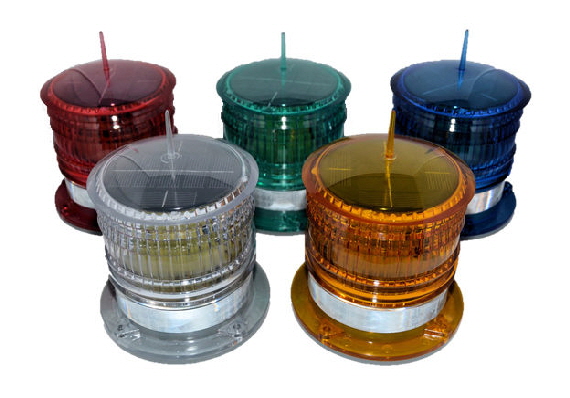

SOLAR WARNING LIGHT

Product Features

Solar powered LED light installed on Cranes, Ships and all kinds of Buoys

Available in blue, red, amber, white and green.

Can be ordered in "steady on" or one of six common flash patterns.

Automatically turns on at dusk and off at dawn.

Completely self-contained and watertight

Designed to operate reliably in the harshest environments

Polycarbonate lens is virtually indestructible.

Will charge under nearly all weather conditions

150 hours of operating capacity from a full charge.

Manufactured to ISO9001:2000 Quality Assurance standards

Provided with one year warranty.

Proprietary patented dome protects solar panel & improves efficiency

DWS 301: 8 LEDs, Flashing or steady on

DWS 302: 16 LEDs, Flashing

DWS 302+: 16 LEDs, Flashing, Magnetic Base




		Product Specifications Effective intensity (transmissive constant of 0.74) 12-26 Candelas Lifespan of LEDS up to 100,000 Hours Solar panel type mono crystalline - efficiency 14% Battery Pure-lead thin plate with starved-electrolyte Weight 1.1 kg Temperature range - 40°C to + 8 °C IP67
