SYSTEM FEATURES

• Designed for easy operator use
• System test with self-diagnostic capabilities
• Resistive touch screen operation
• Colour display with excellent sunlight readability
• On board basic calibration with simple calibration techniques
• Vibration proof and tested at extreme temperatures including high humidity (-20 to 70°C)
• Real time clock with calendar
• Data logger (to USB memory stick) -  logging of all batches completed
• Easily downloadable using USB stick to specifically designed PC software

WEIGHING MODES & DATA MANAGEMENT

• Target Weight Display
• Total Weight Display
• Remaining Weight Display
• Number of Buckets Displayed
• Payload Limit Warning – Audio & Visual
• Recall/subtract last load (cancel last bucket)
• Easy zeroing to tare the system
• Batch Setup with Truck ID and Customer / Product

TECHNICAL SPECIFICATIONS

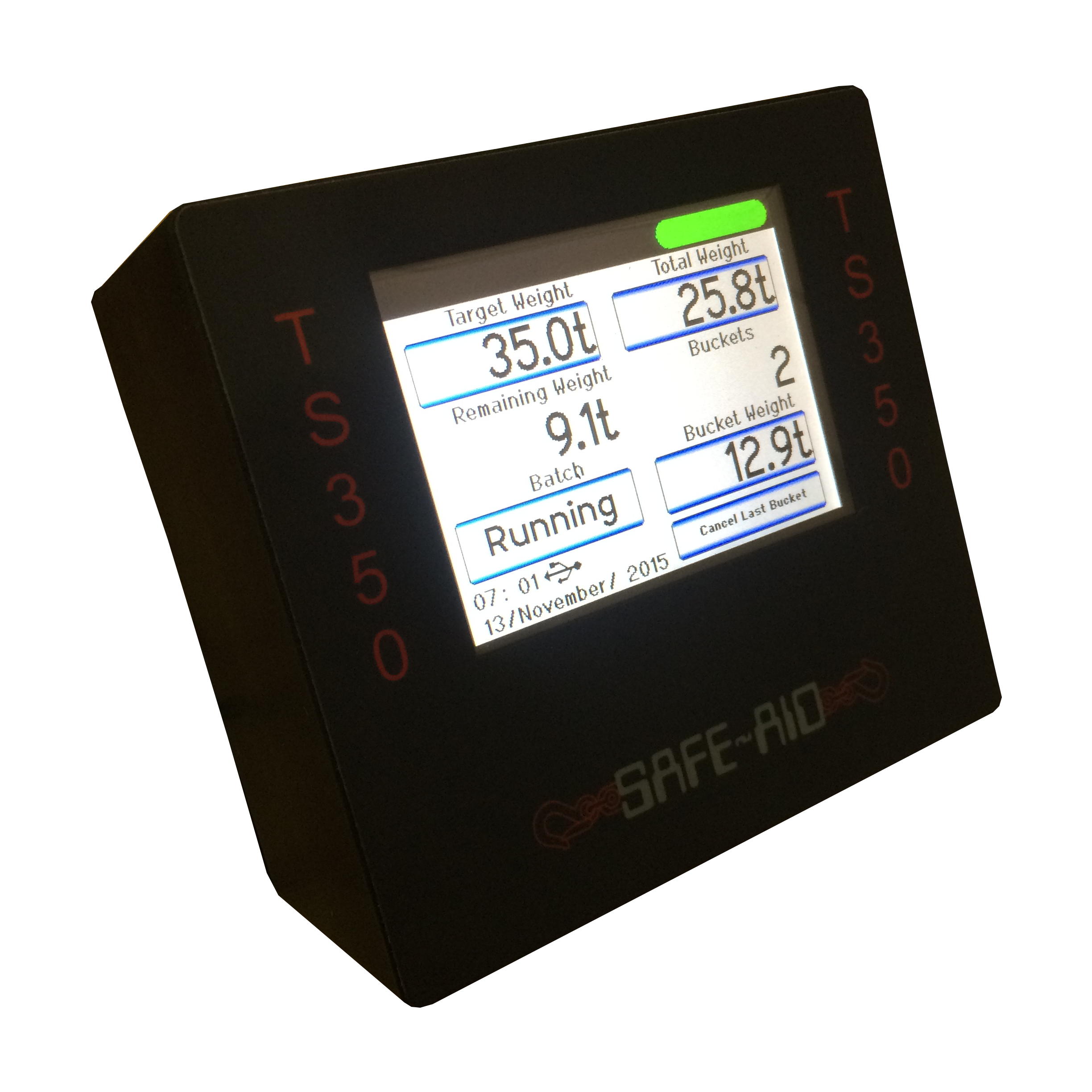

TS350 Display Unit

• 6 - 40 VDC Input Voltage
• Two Multi-layered circuit boards
• 3.5” TFT Colour Touch LCD with back light 55 X 73 Viewing Area
• Aluminium Box CNC Machined from solid billet with powder coated sheet metal backend
• Replaceable Transparent Touch Screen protection sticker – seals touch panel
• CAN Bus & MODBUS (RS485) communication
• 1 x USB Device port (USB-A)\
• 1 x Wireless port (Industrial RF communication 802.15.4 2.4GHz world-wide license free band)
• 2 x Relay outputs (Potetial free contacts)
• 4 x Optically Isolated Digital Inputs
• 2 x 4-20mA Inputs (can be configured optionaly as 0-10VDC inputs)
• 1 x Load Cell Input with 5VDC Excitation
• IP54 Environmental Protection
• Outside Dimensions 110 x 120 x 85mm (L x W x H) excluding mounting bracket
• Real time clock with battery backup

Pressure Sensors

• 4-20mA Output
• 250 – 600 Bar measuring range
• IP67 M12 connector
• ¼ NPT High pressure hydraulic fitting
• Outside Dimensions 50 x 22 x 22mm (L x W x H) excluding connecting cable and plug
