SAFE-AID TS7000 LOAD MOMENT INDICATOR FOR TELESCOPIC HANDLERS

SYSTEM FEATURES

  • Designed for easy operator use
  • System test with self-diagnostic capabilities
  • Resistive touch screen operation
  • Large colour display with excellent sunlight readability
  • All faults displayed as text messages – no codes
  • Complete load chart memory
  • On board basic calibration with simple calibration techniques
  • Vibration proof and tested at extreme temperatures including high humidity (-20 to 70°C)
  • Rated Load Display – Max load allowed for selected configuration and sensed parameters
  • Lifted Load Display – Load on hook (including hook and all ancillary lifting equipment)
  • Radius Display – Distance from centre line of rotation to load centre
  • Percentage of Rated Load Display - % Utilisation
  • Main Boom Length Display
  • Main Boom Angle Display
  • Anti-2-Block incorporated into the system  (Only if winch fitted)
  • Boom Telescope Monitoring and Control - If required
  • Multiple telescopic sections monitored with percentages on screen - If required
  • Control of multiple valves for telescoping - If required
  • 90% Audio and Visual pre-warning
  • 100% Audio and Visual overload warning
  • Relay output for lever cut-off (output to hydraulic dump circuit)
  • On screen override for momentarily overriding lever cut-off - Optional
  • Key switch for overriding lever cut-off
  • Data Logger – Optional
  • Wind Speed Display with selectable units of measure – Optional
  • Maximum Wind Speed allowed with audio and visual alarm – Optional



TECHNICAL SPECIFICATIONS


TS7000 Display Unit

  • Single Multi-layered circuit board – 4 layers
  • 7” TFT Colour Touch LCD with back light
  • Graphical Colour Screen – 256,000 Colours
  • Display Resolution – 800 x 480 Pixels
  • 91 x 152mm Viewing Area
  • Aluminium Bezel fitted to powder coated sheet metal enclosure
  • Replaceable Transparent Touch Screen protection sticker
  • CAN Bus or MOD Bus communication
  • 1 x Optically Isolated Digital Input
  • 1 x High side driver with intelligent protection and fault reporting
  • IP55 Protection (BS7262 5.7)
  • Outside Dimensions 145 x 203 x 55mm (L x W x H) excluding mounting bracket



M400 Mother Board

  • Single Multi-layered circuit board – 2 layers
  • 10 – 36VDC Input Voltage
  • 2 x Optically Isolated Digital Inputs (PNP or NPN user selectable)
  • 1 x Load Cell Input (mV input)
  • 1 x 0 – 5VDC Analogue Input
  • 2 x 4-20mA Inputs
  • 4 x Relay Outputs with intelligent protection and fault reporting
  • IP66 Glass Fibre reinforced polyester enclosure
  • CAN Bus and / or Wi-Fi (Optional) Communication
  • Outside Dimensions 220 x 120 x 100mm (L x W x H) excluding gland entries



Cable Reeling Drum

  • IP66 Cast aluminium enclosure with powder coated steel reel and galvanised spring assembly
  • Twin spring driven cable reel with anti-run back feature to prevent damage to spring if cable is broken
  • Simple boom length cable replacement procedure
  • Length measurement using potentiometer with resistor pull up feature to detect open circuit
  • Angle measurement using a high sensitivity multi axis accelerometer (accuracy ±0.1°)
  • 2mm  Single core boom length cable coated with PVC to give 3mm overall diameter
  • 1 x Load Cell Input (mV input)
  • 2 x 4-20mA Inputs
  • 1 x 0 – 5 VDC Input
  • CAN Bus and/or Wi-Fi (Optional) Communication
  • Outside Dimensions 560 x 245 x 285mm (L x W x H) excluding gland entry
  • Anti-2-Block switch monitoring with resistor pull up for short circuit detection – If winch fitted
  • 2 Track slip ring with 2 core cable for Anti-2-Block monitoring on boom tip – If winch fitted
  • 4 Track slip ring with 4 core cable for communication to A400 amplifier on boom tip – Optional



Pressure Sensors

  • 4-20mA Output
  • 250 – 600 Bar measuring range
  • IP67 M12 connector
  • ¼ NPT High pressure hydraulic fitting
  • Outside Dimensions 50 x 22 x 22mm (L x W x H) excluding connecting cable and plug



Wired Anemometer (Wind Speed Meter) - Anemo4403

  • 5 - 24 VDC Input Voltage
  • Measuring range 0.5 - 50 meters per second (2 – 180 kilometres per hour)
  • Black Technical Plastic Body with Robust Flexible Rotor
  • Self-levelling mounting bracket
  • 20m Connecting cable from anemometer to A400 amplifier
  • IP65 environmental protection
  • Outside Dimensions 125 x 125 x 315mm (L x W x H) excluding connecting cable

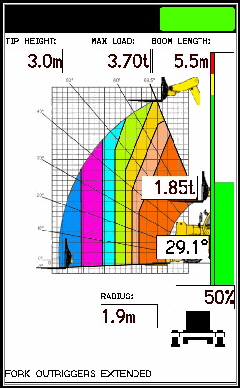

TS7000 Screen View - Telescopic Handler

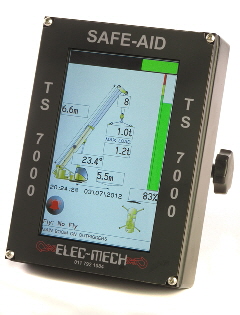

TS7000 Load Moment Indicator Display Unit

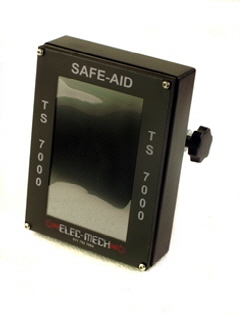

TS7000 Load Moment Indicator Display Unit
IP67 M400 Motherboard Box

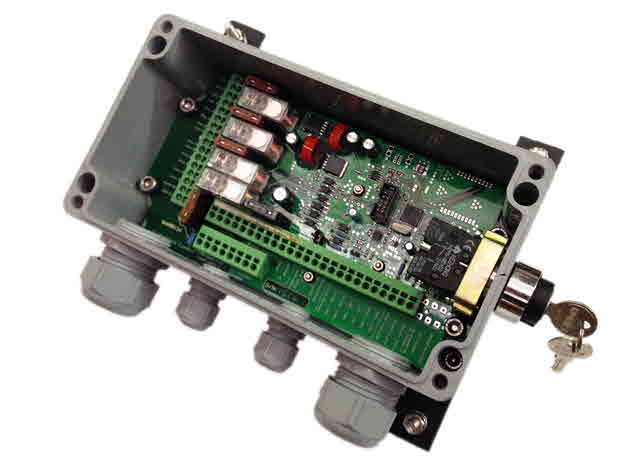

M400 Motherboard Inernal View
Cable Reeling Drum - External View
Cable reeling Drum - Internal View with Slipring Asssembly
Pressure Transducer Including Cable
Wired Wind Speed Meter

SYSTEM COMPONENTS

QUANTITY

ITEM DESCRIPTION

1

TS7000 DISPLAY UNIT INCLUDING SWIVEL MOUNTING BRACKET

1

M400 MOTHERBOARD IN IP67 JUNCTION BOX SUITABLE FOR EXTERIOR MOUNTING

1

COMPLETE CABLE REELING DRUM (INCLUDING ROLLER GUIDE, CABLE GUIDES & ANCHOR POINT)

1 OR 2

PRESSURE SENSORS (250 – 600 BAR)

1

COMPLETE OPERATORS MANUAL

ALL CABLES TO COMPLETE INSTALLATION OF COMPLETE TS7000 SAFE LOAD INDICATOR

OPTIONAL COMPONENTS

QUANTITY

ITEM DESCRIPTION

SYSTEM USE

1

DATA LOGGER WITH REAL TIME CLOCK AND BATTERY BACKUP

OPTIONAL EXTRA FOR TS7000 DISPLAY UNIT – CAN ONLY BE FITTED AT FACTORY

1

WIRED ANEMOMETER – WIND SPEED METER

OPTIONAL EXTRA – REQUIRES 4 PIN MILITARY SPECIFICATION PLUGS ON MAIN AND/OR AUXILIARY AMPLIFIER BOXES

1

3 TIER ROTATING ROBOT LIGHT (RED, AMBER & GREEN) WITH FILAMENT TYPE BULB - 12 OR 24VDC)

OPTIONAL EXTRA REQUIRED BY SOME CONSTRUCTION AND MINING REGULATIONS

1

3 TIER FLASHING LED ROBOT LIGHT (RED, AMBER & GREEN) – 24VDC ONLY

OPTIONAL EXTRA REQUIRED BY SOME CONSTRUCTION AND MINING REGULATIONS

3 Tier Robot Lights LED or Rotating Incandescent
