SYSTEM FEATURES

• Designed for easy operator use
• System test with self-diagnostic capabilities
• Resistive touch screen operation
• Large colour display with excellent sunlight readability
• On board basic calibration with simple calibration techniques
• Vibration proof and tested at extreme temperatures including high humidity (-20 to 70°C)

MODES & DATA MANAGEMENT

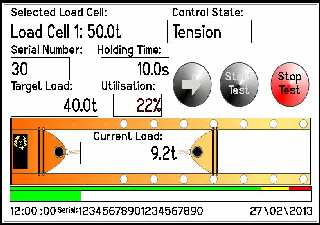

• Target Load Display
• Actual Load Display
• Provision of asset number entry prior to each test

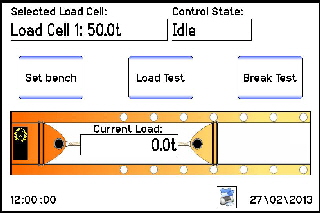

• Break test function
• Real time clock with calendar to facilitate date & time indication for data
• Data Logger – data points to be logged against time to enable plotting of a load graph
• Easy zeroing to tare the system
• All test reports saved to USB flash drive to enable easy printing

TECHNICAL SPECIFICATIONS

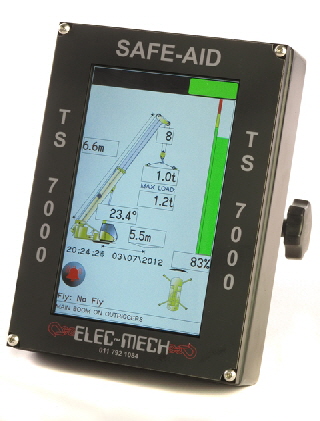

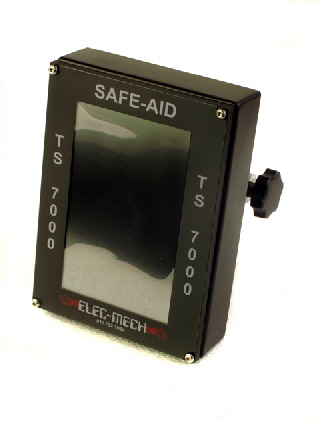

TS7000 Display Unit

• Single Multi-layered circuit board – 4 layers
• 7” TFT Colour Touch LCD with backlight
• Graphical Colour Screen – 256,000 Colours
• Display Resolution – 800 x 480 Pixels
• 91 x 152mm Viewing Area
• Aluminium Bezel fitted to powder coated sheet metal enclosure
• Replaceable Transparent Touch Screen protection sticker
• CAN Bus & MOD Bus 485 communication
• 1 x Optically Isolated Digital Input
• 1 x High side driver with intelligent protection and fault reporting
• IP55 Protection (BS7262 5.7)
• Outside Dimensions 145 x 203 x 55mm (L x W x H) excluding mounting bracket
• Battery Backup
• USB A Chassis Mount Plug

T300 Mother Board in Protective Box

• Double Multi-layered circuit board – 2 layers
• 230VAC Input Voltage
• IP66 Glass Fibre reinforced polyester enclosure
• 2 x Load Cell Input (mV input)
• 6 x Normally Open 10A Outputs (12 to 3VDC or 230VAC)
• 2 x Potential Free Contact Relays
• 2 x Optically Isolated Digital Inputs
• 1 x 4-20mA Input
• CAN Bus and/or Wireless (Optional) Communication
• Outside Dimensions 260 x 160 x 95mm (L x W x H) excluding gland entry

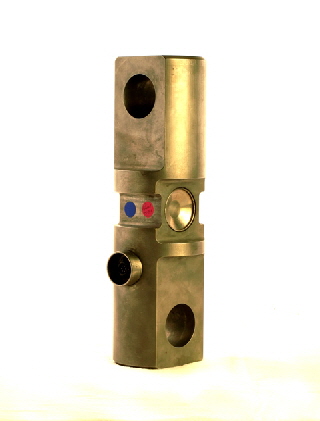

Load Cell

• Measuring range – As per client specification
• Excitation - 2mV per volt
• Load cell connection via military specification plug. .
• IP64 environmental protection
• Multiple load cells can be supplied and used for better accuracy
