SYSTEM FEATURES

• Designed for easy operator use
• System test with self-diagnostic capabilities
• Resistive touch screen operation
• Large colour display with excellent sunlight readability
• All faults displayed as text messages – no codes
• Complete load chart memory
• On board basic calibration with simple calibration techniques
• Vibration proof and tested at extreme temperatures including high humidity (-20 to 70°C)

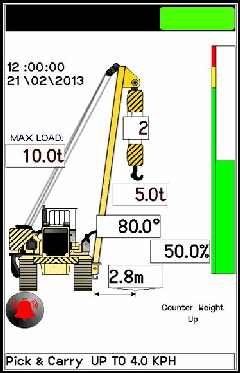

• Rated Load Display – Max load allowed for selected configuration and sensed parameters
• Lifted Load Display – Load on hook (including hook and all ancillary lifting equipment)
• Radius Display – Distance from centre line of rotation to load centre
• Percentage of Rated Load Display - % Utilisation
• Main Boom Angle Display
• Tilt Angle Display – X & Y axis
• Counterweight Position Display
• Anti-2-Block incorporated into the system

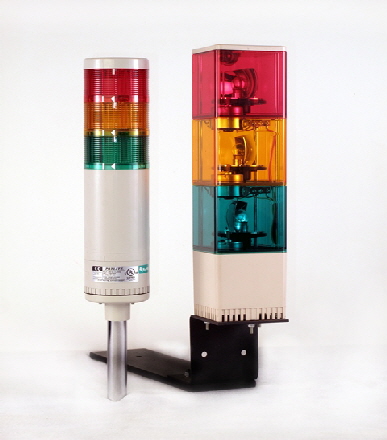

• 90% Audio and Visual pre-warning
• 100% Audio and Visual overload warning
• Relay output for lever cut-off (output to hydraulic dump circuit)
• On screen override for momentarily overriding lever cut-off - Optional
• Key switch for overriding lever cut-off
• Data Logger – Optional
• Wind Speed Display with selectable units of measure – Optional
• Maximum Wind Speed allowed with audio and visual alarm – Optional

TECHNICAL SPECIFICATIONS

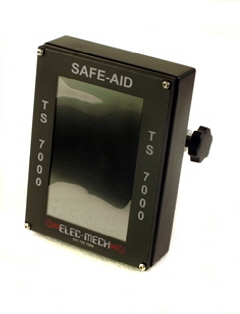

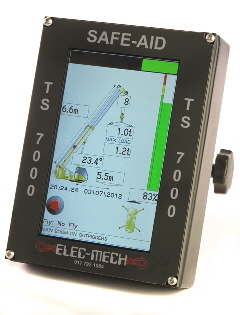

TS7000 Display Unit

• Single Multi-layered circuit board – 4 layers
• 7” TFT Colour Touch LCD with back light
• Graphical Colour Screen – 256,000 Colours
• Display Resolution – 800 x 480 Pixels
• 91 x 152mm Viewing Area
• Aluminium Bezel fitted to powder coated sheet metal enclosure
• Replaceable Transparent Touch Screen protection sticker
• CAN Bus or MOD Bus communication
• 1 x Optically Isolated Digital Input
• 1 x High side driver with intelligent protection and fault reporting
• IP55 Protection (BS7262 5.7)
• Outside Dimensions 145 x 203 x 55mm (L x W x H) excluding mounting bracket

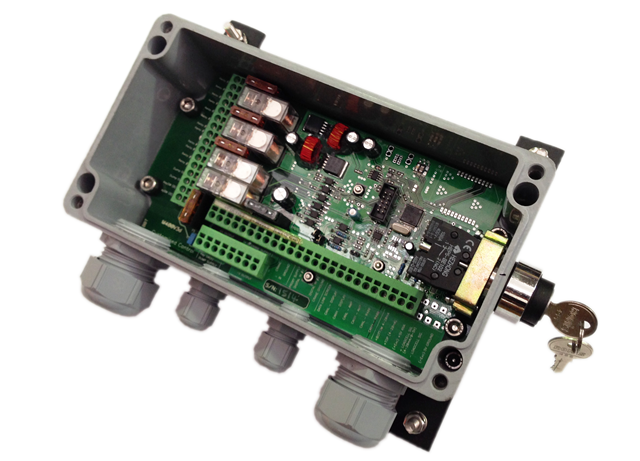

M400 Mother Board

• Single Multi-layered circuit board – 2 layers
• 10 – 36VDC Input Voltage
• 2 x Optically Isolated Digital Inputs (PNP or NPN user selectable)
• 1 x Load Cell Input (mV input)
• 1 x 0 – 5VDC Analogue Input
• 2 x 4-20mA Inputs
• 4 x Relay Outputs with intelligent protection and fault reporting
• IP66 Glass Fibre reinforced polyester enclosure
• CAN Bus and / or Wi-Fi (Optional) Communication
• Outside Dimensions 220 x 120 x 100mm (L x W x H) excluding gland entries

Tip Mounted A400 Amplifier Board or Chassis Mounted A400 Tilt Board

• IP66 Glass Fibre reinforced polyester enclosure
• Angle & Tilt measurement using a high sensitivity multi axis accelerometer (accuracy ±0.1°)
• Anti-2-Block switch monitoring with resistor pull up for short circuit detection
• 1 x Load Cell Input (mV input)
• 2 x 4-20mA Inputs
• 1 x 0 – 5 VDC Input
• 2 x Digital Inputs with intelligent monitoring for A-2-B & Wind Speed
• CAN Bus and/or Wireless (Optional) Communication
• Outside Dimensions 160 x 75 x 60mm (L x W x H) excluding gland and plug entries
• Supplied with heavy duty steel housing for overall protection of enclosure

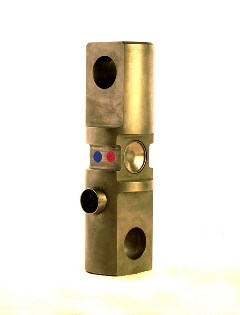

Load Cell

• Stainless steel and hardened body for extreme durability
• Bridge resistance 350Ω + 4Ω
• Rated Output ±1mV / V
• Maximum excitation 15 VDC
• Measuring range – As per crane manufacturers maximum single line pull specifications
• IP67 Military Specification connector

Wired Anemometer (Wind Speed Meter) - Anemo4403

• 5 - 24 VDC Input Voltage
• Measuring range 0.5 - 50 meters per second (2 – 180 kilometres per hour)
• Black Technical Plastic Body with Robust Flexible Rotor
• Self-levelling mounting bracket
• 20m Connecting cable from anemometer to A400 amplifier
• IP65 environmental protection
• Outside Dimensions 125 x 125 x 315mm (L x W x H) excluding connecting cable
