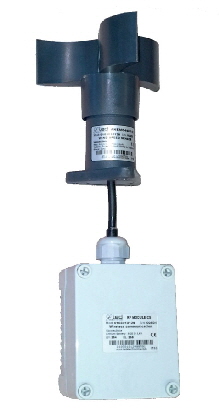

ANEMO 4403 RF WINDSPEED METER (ANEMOMETER) WITH WM44-P RF DISPLAY UNIT

WIRELESS WIND SPEED METER

INTRODUCTION

Lithium battery powered wireless wind speed sensor.

Windspeed monitoring with two warning alarms

3-Digit 7 Segment Display

2 Indiactor LEDs of activated alarms “AL1 and AL2”

Display can be programeed in km/h or MPH

Selection between km/h and MPH at any time by pressing “SELECT”

2 Indication LEDs of working mode km/h or MPH

Robust and high durability under extreme conditions.

Exclusive use with WM44-P RF display.

Industrial RF communication 802.15.4 2.4GHz, world-wide license free band.

Plug & Play system.

Wide measuring range. From 2 to 200km/h.

High quality stainless steel bearings. Maintenance free.

Robust wind speed sensor, extremely resistant and flexible, probably one of the best wind sensors in the market. Suitable for many different applications. Battery life: up to 36 months (with ER34615 19Ah). Battery not included unless specified.

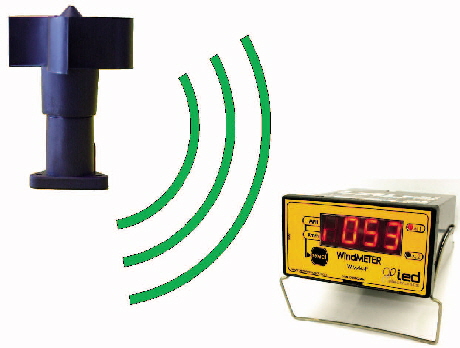

Developed to be connected to display WM44-P RF. Plug & Play. No user configuration needed. More than one ANEMO4403 + RF MODULE+ WM44-P RF can operate in the same area, with no risk of interaction / interference.

Made with high quality materials. Body and cup anemometer are manufactured in technical plastic. Bearings manufactured in stainless steel.

APPLICATIONS

Anemo4403 + RF MODULE has been designed for home and industrial applications: cranes, buildings, PV panels, wind turbines and weather stations

OPERATING

Each Anemo4403 RF MODULE must be supplied with an associated WM44-P RF display. Powering WM44-P RF is the only requirement to visualize the wind speed from its associated Anemo4403 RF BAT.

Inputs / Outputs

From 2 to 200Km/h wind speed.

RF Communication, compliant to IEEE 802.15.4, 2.4 GHz.

ALARMS

The alarm is triggered when the programmed value is reached or exceeded. An activation delay is included to prevent false alarms due to short gusts of wind.

An alarm is deactivated when the wind speed drops below the programmed threshold. A deactivation delay is also included.

Activation of ALARM 2 deactivates ALARM 1.

With ALARM 2 activated the displayed wind speed blinks as a warning.

Alarm configurable characteristics: trigger values, polarity, intermittent or continuous operation, alarm latching (only ALARM 2).

Alarm output: Relays. “ALARM 1” contacts “NO” and “NC”, “ALARM 2” contact “NO”. Voltage free relay contacts.

TECHNICAL CHARACTERISTICS - ANEMO 4403 RF

Power supply	Lithium battery. Size “D” 3,6V 19 Ah	Accuracy	+-2%
Power consumption	0,6mA 5Ah / year	Accuracy	+-2%
RF communication	IEEE 802.15.4. ISM 2.4 GHz Transmit Power: 10mW (10dBm) Receiver Sensitivity: -100dBm	Transmission period	2 s
		Storage temp.	-35 ºC ... +85 ºC
		Operating temp. (ice free)	-20 ºC ... +60 ºC
Communication range	Indoor/Urban : 60 m max. 30 m typ. Outdoor Line-of-sight : 750 m max.200 m typ.	Weight Anemo4403 + RF MODULE (w/o battery)	350 g approx.
Measure range	from 2 to 200 km/h	Weight RF MODULE only	200 g approx.
Starting speed	8 km/h	IP Rating	IP65

TECHNICAL CHARACTERISTICS - WM44-P RF

Power supply	16 - 24V DC (contact for other options)
Power consumption	< 3.5A
RF communication	IEEE 802.15.4. ISM 2.4 GHz Transmit Power: 10mW (10dBm) Receiver Sensitivity: -100dBm
Communication range	Indoor/Urban : 60 m max. 30 m typ. Outdoor Line-of-sight : 750 m max.200 m typ.
Maximum Measure	200 km/h or 124MPH
Accuracy	+/- 2%
Analogue Output	4 - 20 mA
Maximum Load on Analogue Output	500 ohm
Analogue Output Error (1000 working steps)	15 steps maximum
Non condensable relative humidity according to IEC 68-2-3 e IEC 68-2-27
Impacts according to a IEC 68-2-27
Vibrations according to IEC 68-2-6
Storage temperature	-35 ºC ... +70 ºC
Operating temp. (ice free)	20 ºC ... +70 ºC
IP Rating (front)	IP50
Weight	0.350 Kg (approximately)


CONNECTION - ANEMO 4403 RF

Powered by 3.6V Lithium Battery

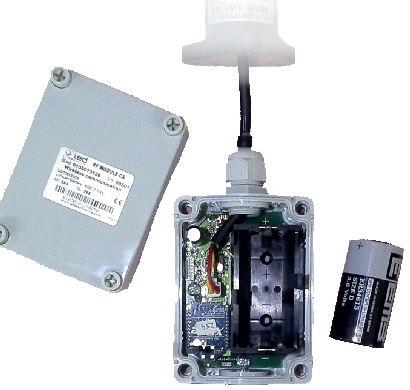

Remove the cover with a screwdriver to access the battery case. The lithium battery is placed in the battery case. After the battery is fitted into the battery case, put back the cover by tightening the screws. NOTE: Battery not included unless otherwise specified

CONNECTION - WM44-P RF

Powered by 16-24V DC

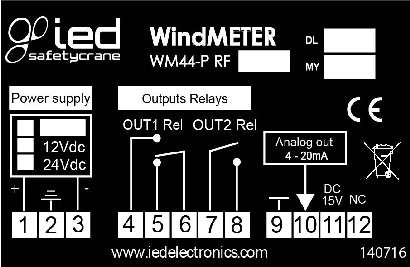

Take note of the connection diagram

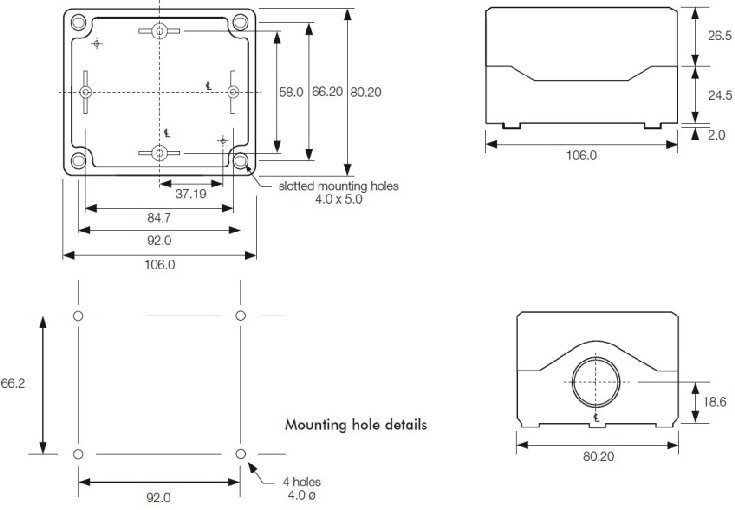

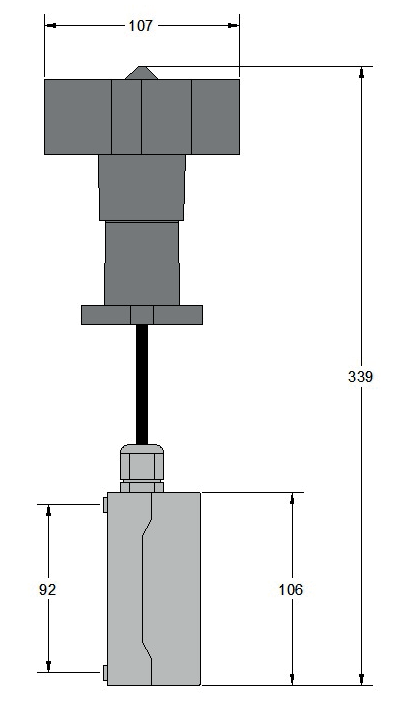

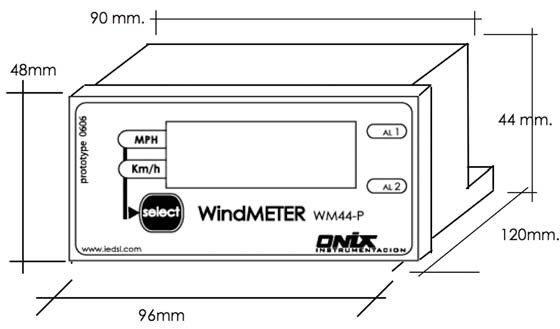

DIMENSIONS
